    RelyX™ Fiber Post, Drill Size 1 / 2 / 3 / Universal



    Fibre Post



    More than a post alone, RelyX™ Fiber Post from3M ESPE is a complete system, designed to make excellent clinical results easier to achieve.

    • Greater fatigue resistance than many other leading fiber posts
    • RelyX™ Unicem Aplicap elongation Tip allows virtually void-free cementation
    • Aesthetic due to translucency and no risk of corrosion that can occur with metal posts

    RelyX Fiber Post offers long-term safety and stability.

    Greater elasticity
    RelyX™ Fiber Post has elasticity more similar to dentin than metal and ceramic posts have – so there’s a lower risk of root fracture due to the "wedge effect".

    Fatigue resistance
    RelyX™ Fiber Post shows excellent fatigue resistance when compared to competing brands of fiber posts.

    See the results of the In Vitro fatigue test

    Permanent restorations will stay permanent
    RelyX™ Unicem cement offers proven optimal bonding strength with less prep work. WithRelyX™ Unicem cement there is no need to etch, prime or bond. Its proven performance is backed by more than 60 studies and third-party endorsements.

    Faster, easier and more reliable cementation
    RelyX™ Unicem Aplicap™ elongation tip is designed to allow you to fill the root canal from bottom to top, reducing the chance of cement voids that can compromise bond strength.

    Because you can fill the root canal from bottom to top, you reduce the chance of cement voids that can compromise bond strength.

    These SEM images show a cross-section and side view of a simulated root canal that was filled with RelyX™ Unicem cement, using a common method (right) and the new elongation tip (left), which shows visibly less voids.


    • In case of insufficient residual tooth structure (< 4mm)
    • A post is needed to support and secure the coronal restoration

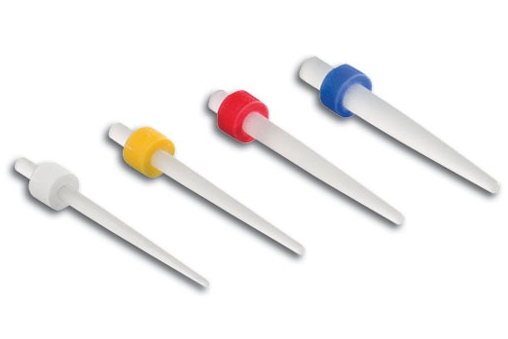

    RelyX™ Fiber Post Glass Fiber Posts and drills are available in four sizes and are color-coded to ensure an accurate match.

    RelyX™ Unicem Aplicap™ elongation tips and RelyX™ Unicem 2 Automix Endo Tips are designed to also fit into root canals prepared for the smallest sizes of RelyX™ Fiber Post (white and yellow).

     Color codingLengthDiameter apicalDiameter coronalConicity / Taper
    Size 0
    White
    White    		 20 mm 0.6 mm 1.1 mm 2,86° (5%)
    Size 1
    Yellow
    Yellow    		 20 mm 0.7 mm 1.3 mm 3,44° (6%)
    Size 2
    Red
    Red    		 20 mm 0.8 mm 1.6 mm 4,58° (8%)
    Size 3
    Blue
    Blue    		 20 mm 0.9 mm 1.9 mm 5,72° (10%)
    Item No.Product Information

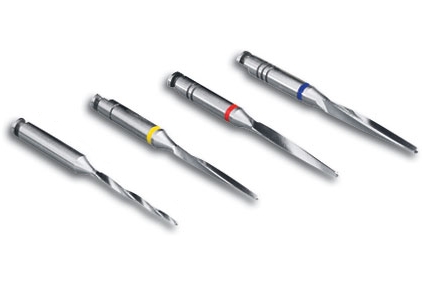

      56864 Relyx Fiber Post Drill Size 1
    1 Drill Size 1 (1.3 mm Dia)
      56865 Relyx Fiber Post Drill Size 2
    1 Drill Size 2 (1.6 mm Dia)
      56866 Relyx Fiber Post Drill Size 3
    1 Drill Size 3 (1.9 mm Dia)
      56867 Relyx Fiber Post Universal Drill
    1 Universal Drill




    - DPS10
    DPS10

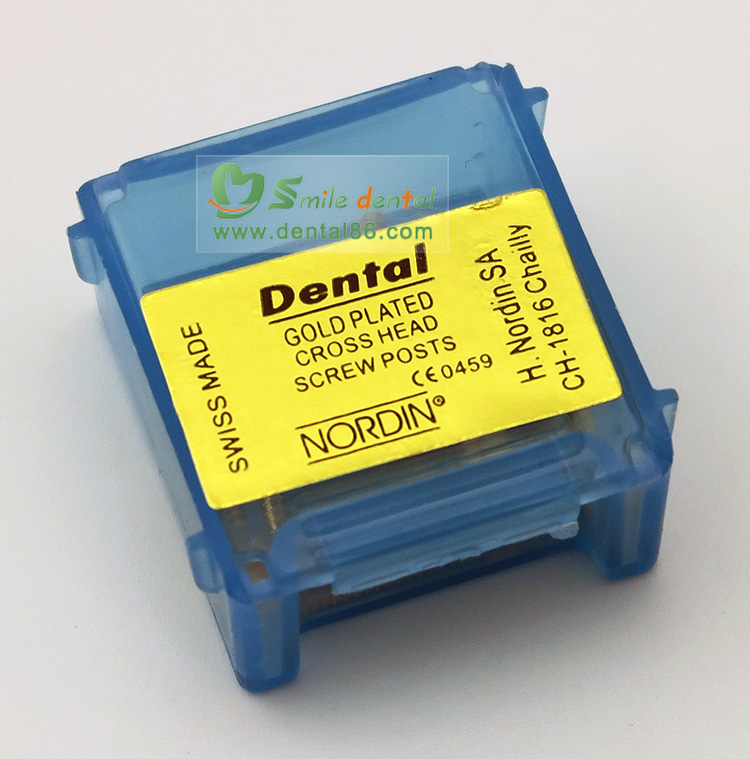

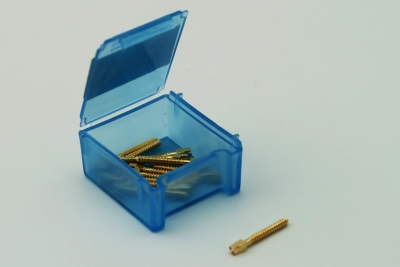

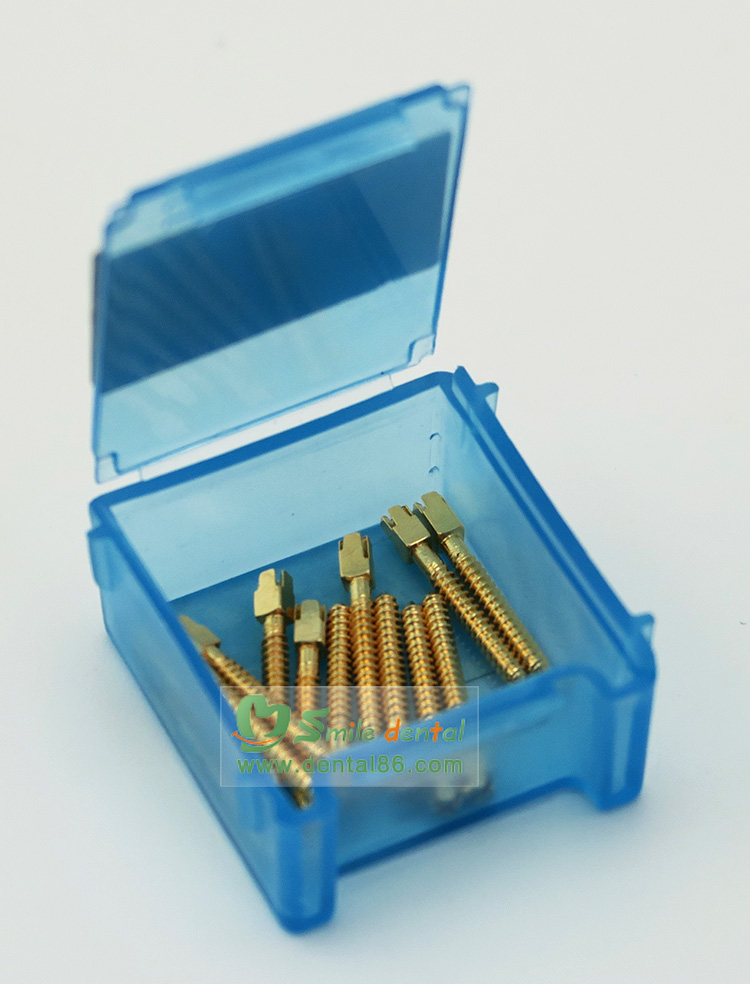

    Dental Gold Plated Screw Posts cross head

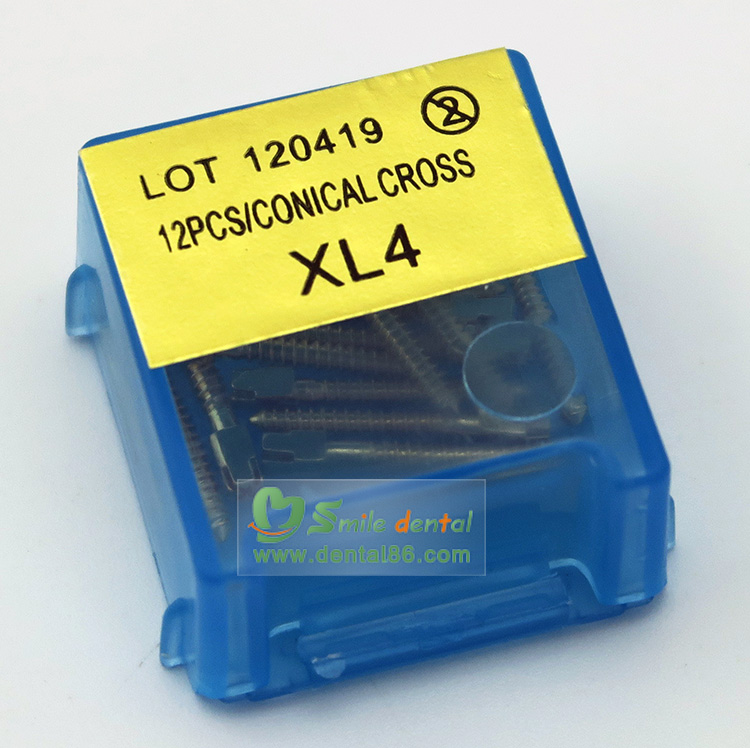

    Refill with 12 screw posts




    High quality precision finish in a special lead free alloy, conical shaped. Thread made similar to that of a modern self-tapping screw. Gold plated screw posts electrolytically plated with a thick layer of 24 K gold.

    Refill with 12 screw posts

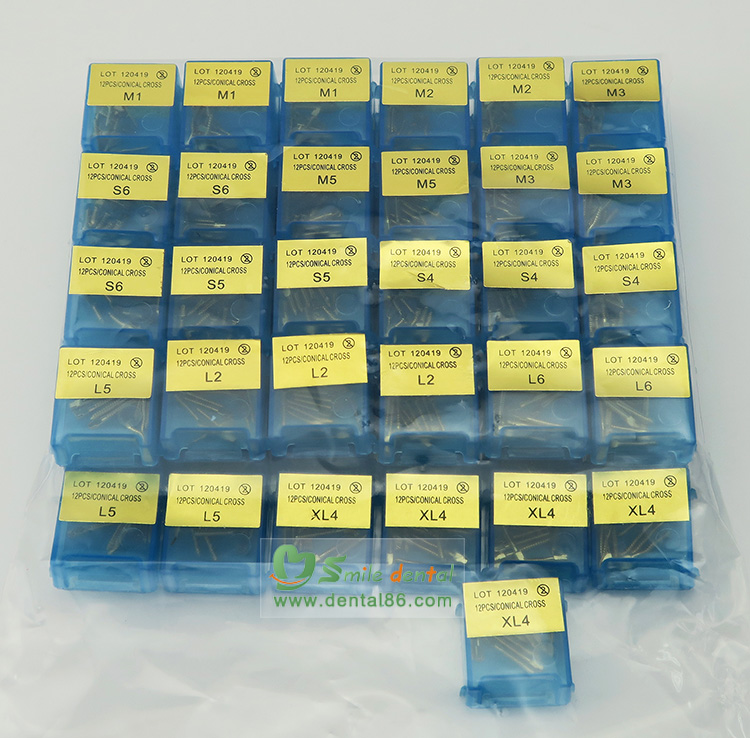

    All screw posts the same size Nr 1, 2, 3, 4, 5, 6
    S/short M/medium L/long
    XL/extra long only Nr 4 & 6

    How to Use Screw Posts

    Use a reamer that will match the selected screw post. The root canal should be enlarged with the reamer and deepened to desired depth. Eccentric movement of reamer should be avoided. Using key, the post should be screwed into the root to check the length of the canal. When this is done remove the screw post. After cleaning and drying the root canal and the post, the post is dipped into cement and screwed home. A screw placed in the mesial and distal canals gives a good anchorage. Screw posts give this possibility, because of the good variation in sizes.

    dental05 dental06 dental07 dental08













    - DPS13
    DPS13

    Dental Titanium Screw Posts cross head



    Refill with 12 screw posts




    Once again same shape and number but in strong 99.8% pure titanium, which is tissue compatible and is the metal mostly recommended for humain implants.

    Refill with 6 screw posts


    All screw posts the same size Nr 1, 2, 3, 4, 5, 6
    S/short M/medium L/long
    XL/extra long only Nr 4 & 6

    How to Use Screw Posts

    Use a reamer that will match the selected screw post. The root canal should be enlarged with the reamer and deepened to desired depth. Eccentric movement of reamer should be avoided. Using key, the post should be screwed into the root to check the length of the canal. When this is done remove the screw post. After cleaning and drying the root canal and the post, the post is dipped into cement and screwed home. A screw placed in the mesial and distal canals gives a good anchorage. Screw posts give this possibility, because of the good variation in sizes.

    dental05 dental06 dental07 dental08
