Integral Type Suction

DP32 Integral Type Suction

Integral type suction

Noise reduction,low vibration

Doors can be completely disassembled,easy to install

Separator and drainage bottle can be removed at any time to clean and install



DP32

DS3701M



Electric Suction Apparatus

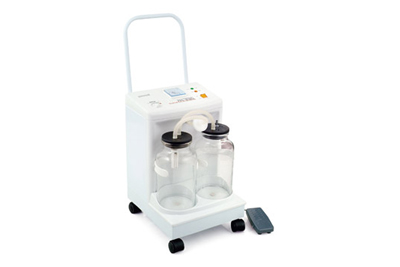

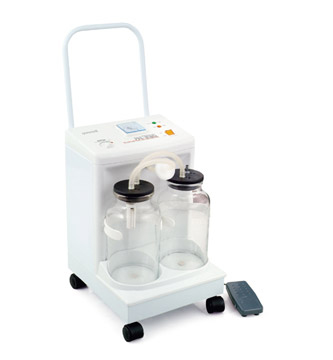

9A23D Electric Suction Apparatus

72-23D type of electric suction qpparatus adopts completely plastic panel design.Which makes it more fancy and fashionable.The device of intercepting oil for circumfluence can reduce the oil pollutiion.Easy to carry,low noise,high negative pressure and large flux.It can be widely applied in the surgical operations which need to absorb phlegm,thick liquid tec.

-Oil-free pump  -Convenient-no need to add oil for maintenance

-Clean-no pollution of oil  -Safe -no positive pressure during using

Technical data:

Power Voltage:AC220V,50Hz±1Hz       Max negative pressure:≥90kPa

Operation noise:≤65dB(A)                  Input power:180VA

Pumping frequency:≥20L/min              Reservoir capacity:2500mL/pc.2pieces

Max negative pressure: ≥0.09MPa
    Noise:≤ 65 dB (A)
    Power: ≤180VA
    Pumping rate: ≥20L/min
    Reservoir capacity: 2500mL/pc, 2pieces
    Note:
    Not suitable for continuous use in the induced abortions and for the inflammable or explodable surroundings. Max continuous working time is 30 minutes, continuity rate: 50%
    Electrical appliance safety requirement: Class I, Type B



Portable Suction Unit

1. 1.High negative pressure, large flux, low noise
2. Pumping rate: ≥17L/min
3. light weight and easy to carry

9EA Portable Suction Unit

Technical data:
Input power: 90VA    Power supply: DC 12V; 44VA
Max negative pressure value: ≥0.075MPa
Pumping rate: ≥17L/min

Operation noise: ≤ 65dB (A)
Reservoir volume: 1000mL, 1piece

9E Series Portable phlegm suction unit is based on similar products at home and abroad is a new generation of oil free lubrication suction device,which is suitable to use by the patient who has difficulty in phlegm removal due to illness,coma and operation,as well as for aspirating such liquid as pus and blood during the clinical practice.
