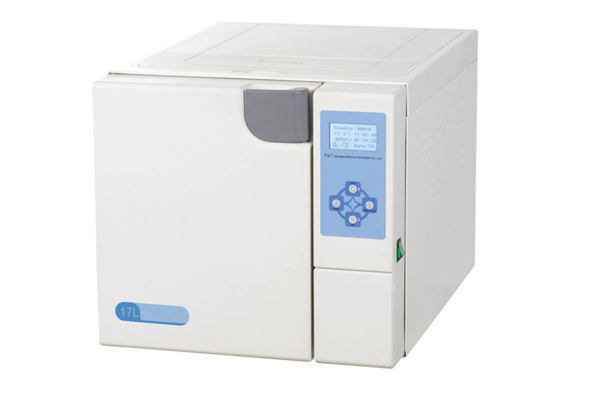

SDT-SS14B-17 Steam Sterilizer

Home > Sterilizers > SS14B-17

Steam Sterilizer

SS14B-17

European Class B 17L

LCD display

Build-in printer

Top-designed Reservoir

E-mail: smiledt@163.com

SS14B-17 Steam Sterilizer

Automatic Sterilizer

Functional Character:

□ Advanced steaming pressure way of sterilization recognized internationally.
□ Operating menus convenience，consumer may setup day, time etc.
□ Deep-stretched shape high quality stainless steel internal bladder.
□ High-luminance liquid crystal display .
□ Built-in temperature sensing printing，and equipped with pc interface，operating with remote maintenance.
□ Setup warm-up key, in order to keep room of sterilization temperature around 70℃.
□ Built-in and set by itself procedure of antisepsis，and the range of the antisepsis is wide .
□ Built-in cleaning and sewage equipment .
□ When outlaying it can connect with the system of distilled water, it can also connect with the sewage pipe directly.

Application Range:

Pressurized steam sterilizer is mainly applied to operating room．Stomatological Department Ophthalmologic Department and biomedicine research unit, and it can sterilize some substances such as instruments of operation．instruments of Stomatological Department,dressing, glassware, injecting apparatus.

		Room of Sterilization Adopt single shaped stretched stainless steel body with special technology applied to the surface to form a brightness and compact protection. You can enjoy the brightness appraisal and clean space of your machine and do not need to worry about the annoy rust anymore.

		Tray Rack The revolving tray rack can make the space available for 3-5 trays to be put with the antisepsis substances.

		System Of The Printing Built-in temperature sensing printing can make the sterilization procedures more visible and easier to manage.
		Top-designed Reservoir Open seservoir, convenient for water-refilling and cleanning The reservoir is enliarged, making it avaiable for 20 cycles use

Quick Release Coupling

The two quick release coupling in the front make the drainage and watering easy.

Control System

The way of sterilization by pressurized steam is recognized as the most effectively way by international authorization. Through the in- transparency control of computer can avoid the damage caused by the heavy equipment in the procedure of sterilization

Instruction of the Operational Mode:

Pre-set procedure		Tem (℃)	Pressure (bar)	Time of sterilization (Min)	Working total time (Min)	Loading	Maximum loading (kg)
1	Prepare Vacuum three times 134℃ Porous	134	2.1	4	35～45	Un-packed multi-loop equipment	1.00
						Packed textile	0.65
						One-layer packing solid or vacancy substances	3.00
						Double-layer packing solid or vacancy substances	1.50
2	Prepare Vacuum three times 121℃ Porous	121	1.0	20	50～60	Un-packed multi-loop equipment	1.00
						Packed textile	0.65
						One-layer packing solid or vacancy substances	3.00
						Double-layer packing solid or vacancy substances	1.50
3	Prepare Vacuum one times 134℃ Hollow	134	2.1	4	25～35	Un-packed half-solid equipment	6.00
4	Prepare Vacuum one times 134℃ Solid	134	2.1	4	20～30	Un-packed solid equipment	6.00
5	Prepare Vacuum one times 134℃ Solid	121	1.0	20	35～45	Un-packed solid equipment	6.00
6	Customer definition	105-134		4-40
7	Prepare Vacuum three times 134℃ Prion	134	2.1	18	45～60	Un-packed multi-loop equipment	1.00
						Packed textile	0.65
						One-layer packing solid or vacancy substances	3.00
						Double-layer packing solid or vacancy substances	1.50
8	Prepare Vacuum three times Customer definition	126 （105-134）	-	12 （1-40）	Dryness time 15 minutes(3-25min)		-
9*	B-D Test	Applied to Performance Test
10*	Leak Test	Applied to Performance Test

Parameters:

Voltage Rating and Frequency	AC220V, 50～60Hz
Input Power	1800W
Sterilization Temperature	121℃/134℃ (Customer Definition 105℃ ~ 134℃)
Operating Environment Temperature	5℃～40℃
Room of Sterilization(Diameter×Depth)	250mm×350mm
Volume	17 L
