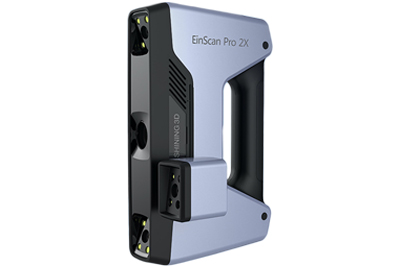

Pro2X Face 3D Scanner

EinScan Pro 2X Face 3D Scanner . High Compatibility . Full-color Scan . Portable & User-friendly Design . Outstanding Scan Performance

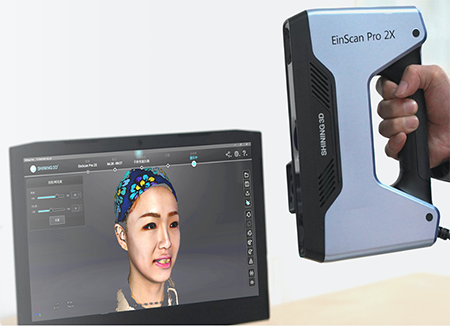

	PORTABLE & USER-FRIENDLY DESIGN With a lightweight and compact size, you can easily take the EinScan Pro 2X anywhere like a laptop, enjoy plug-and-play installation and unlimited scanning experience.
OUTSTANDING SCAN PERFORMANCE The latest development in data capture hardware combining the new scanning software EXScan Pro guarantees incredible scan speed and efficiency, high accuracy and fine detail.

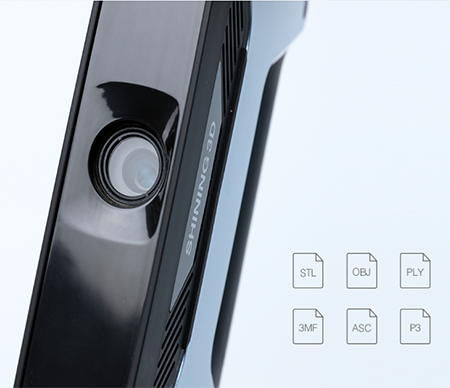

	HIGH COMPATIBILITY Output standard file formats including STL, OBJ, PLY, 3MF, ASC and P3.

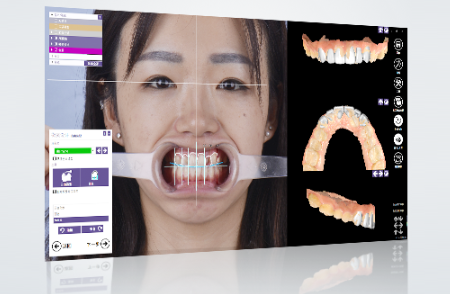

APPLICATION Combining face 3D data, intraoral 3D data and 2D face data with exocad Smile Creator, we can come up with efficient 3D DSD smile design. Learn More

TECHNICAL SPECIFICATIONS
Scan Mode: Handheld Rapid Scan
Scan Accuracy: up to 0.1 mm
Volumetric Accuracy: 0.3 mm / m (markers Alignment)
Scan Speed:30 fps; 1,500,000 points / s
Point Distance: 0.2 mm - 2 mm
Single Scan Range: 135 * 100 mm - 225 * 170 mm
Depth of Field: ±100 mm
Working Distance: 400 mm
Light Source: LED

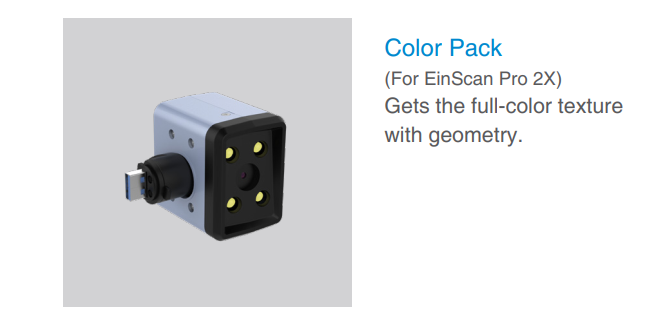

Texture Scan: Yes (with Add-on: Color Pack)
Outdoor operation: Set up the shelter or cover to avoid direct sunlight
Scanner Body Weight: 1.13 kg (include the USB3.0 cable)
Supported OS: Win7, Win8, Win10, 64bit
Recommended Configuration: Graphics card:NVIDIA GTX1060 AND higher; video memory: > 4g;processor: I7-8700, memory: 32g,
Required Configuration: Graphics card: Quadro card P1000 and above or GTX660 and higher;processor: Intel(R) xeon E3-1230, Intel(R) I5-3470

ET01B NiCr  Alloy for fixed metal-to-ceramic with Beryllium

Description:

Ni:79%
Cr:13%
MO:5%
Be:1.7%
Melting range: 1240°C~ 1290°C
Yield strength: 560 Mpa
Elongation: 12%
Density: 8.1/cm2
Coefficient of liner expansion:13.8x10*K"(25 to 500°C)

Shape：VB
Diameter:12.5mm  Height：4mm
Diameter:12.5mm  Height：7mm

The muffle moves up and down

Multi-display screens

SLG3 Porcelain Furnace

●All-ceramic and metal-porcelain functions
●Max temperature: 1305℃
●Excellent sealing performance
●Vacuum is set by time or temperature
●Max working vacuum: -97Kpa
●Temperature calibration by keypad; Time and room temperature display in real time;
●300 programs (max) are set freely by user;
●English and Chinese operation panel;
●Classical 3G: the muffle moves up and down; Multi- -display screens;

N.W:28Kg
SIZE:320X420X510mm
